DT-151M

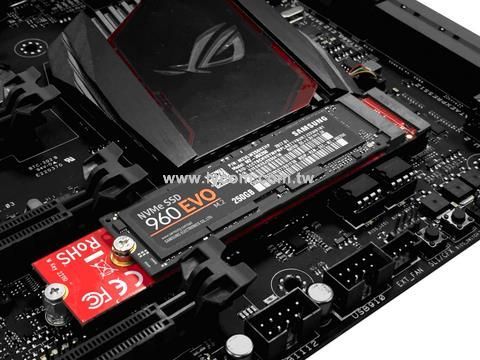

NGFF M.2 M-Key to M-Key Riser Card
|
|
|
|
Discontinued! |
|
FEATURES
o Save and Protect the damage of main board M.2 Socket o Ideal for testing the PCIe-NVMe SSD M.2 modules o M.2 type 22110-D5-M M Key notch 75Pin 110mm PCBA Module
o M.2 NGFF type 2280-D5-M M Key socket on board
o Supports PCIe Gen3 and PCIe Gen2 M.2 M Key 80mm, 60mm, 42mm NVMe SSD o Multiple plated-holes support M.2 type 2242 / 2260 / 2280 module o 2280 and 22110 plated-holes for main board screwing o 100% OS-transparent hardware bridge converter to support Windows, MAC and Linux o Supports operating temperature range: -40 - 80 ºC o Require an empty M.2 M-Key slot in computer o RoHS Compliant |
