DT-151B

NGFF M.2 B-Key to B-Key Riser Card

Save and Protect the damage of Industrial Computer M.2 B-Key Socket!

Ideal for testing the SATA SSD and WWAN M.2 modules

FEATURES

o        Save and Protect the damage of main board M.2 Socket

o        Ideal for testing the SATA SSD and WWAN M.2 modules

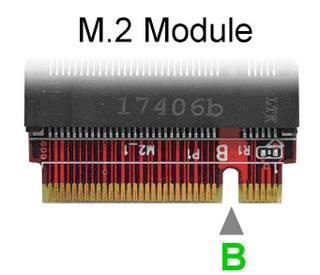

o        M.2 type 22110-D5-B B Key notch 75Pin 110mm PCBA Module

o        M.2 NGFF type 2280-D3-B B Key socket on board

o        Support M.2 B Key and B-M Key Module, such as WWAN (CDMA, GPS, LTE) Module, PCIe Host Module, 80mm SATA SSD

o        Multiple plated-holes support M.2 type 2230 / 2242 / 2260 / 2280 / 3030 / 3042 module

o        2280 and 22110 plated-holes for main board screwing

o        PCIe x1 & USB2.0 & SATA signal interface between M.2 B-Key socket

o        Extra Nano-SIM card holder on the top side for easy testing the WWAN card

o        100% OS-transparent hardware bridge converter to support Windows, MAC and Linux

o        Supports operating temperature range: -40 - 80 ºC

o        Require an empty M.2 B-Key slot in computer

o        RoHS Compliant
