DT-139PM

Fast PCIe Base M.2 B-M Key Module to Micro SD 3.0

Utilize up to 2TB SD 3.0 (SDXC) Memory Card in Embedded Motherboard M.2 B Key or M key Socket via fast PCIe signals



FEATURES

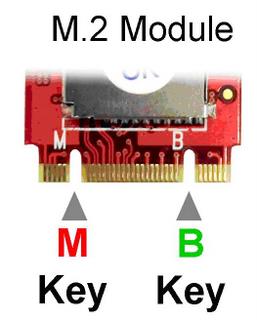

o        Fast PCIe based M.2 type 2242-D5-B-M Dual B-M Key notch 75Pin 42mm PCBA Module





o        Micro SD socket on board support up to 2TB Secure Digital Memory Card

o        Work with main board M.2 B Key Socket and M.2 M Key Socket







o        Complies with Secure Digital Card (SD) specification up to ver. 3.0 (SDXC)

o        Support SDR-104 / DDR 50.

o        Support CPRM function.

o        1K bytes of ping-pong FIFO buffs the data transmission between transmitter and receiver

o        Supports M.2 type 2230 and 2242 plated-holes

o        Supports Windows driver

o        Supports operating temperature range: -40 - 80 ºC

o        PCBA size : 42mm x 22mm

o        Fully RoHS compliant
