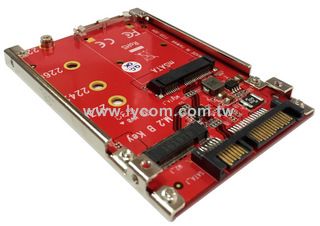

DT-135
Convert mSATA or M.2 SATA SSD to 2.5” 7mm SATA Drive
FEATURES
o Convert mSATA or M.2 SATA SSD to standard 2.5” SATA drive Form Factor
o Supports Full Size mSATA SSD

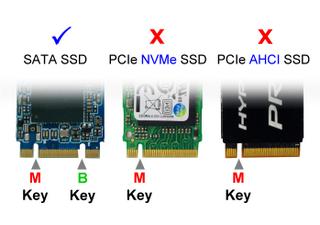

o Supports SATA based 80mm, 60mm, 42mm, 30mm M.2 SSD
o Latch type mSATA connector on board, no need the screw for the retention of mSATA SSD

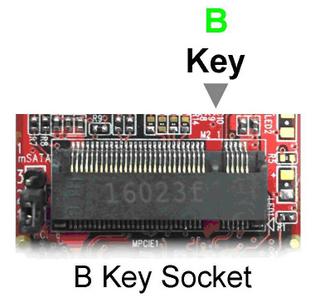

o M.2 NGFF type 2280-D5-B B Key Socket on board
o Supports dual-sided M.2 SSD module 1.5mm component height on the top and bottom side
o 100% Compatible with 2.5” SATA drive mechanical spec
o 22 pin SATA (Signals and Power) male connector on board
o mSATA or M.2 SATA SSD can be the primary bootable device containing the OS and application.
o Includes 2.5 “ drive metal frame with 8 mounting holes and 4 HDD screws
o Transparent to the operating system and no driver required
o Supports any OS like Windows, Mac and Linux
o Dimension of PCBA with 2.5” frame : 100.45mm x 69.85mm x 7mm
o SSD & PCBA power from 15Pin SATA 5V input
o Provides Max 3.3V/4A power to SSD
o M.2 SSD active, if both M.2 & mSATA SSD installed
