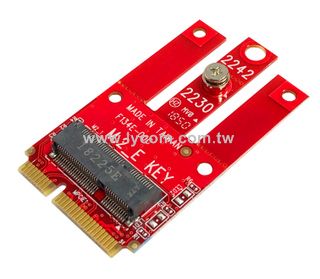

DT-134E

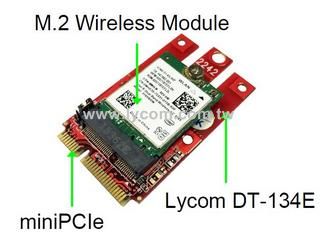

M.2 E Key to miniPCIe Adapter for M.2 WiFi Module

Install Advanced USB base, PCIe base and Dual Band M.2 E Key or A-E Key Wireless Module and become a Full-Mini or Half-Mini miniPCIe Wireless Module for Industrial Computer!

FEATURES

o        Mini PCIe Adapter

o        Convert USB base, PCIe base and Dual Band M.2 wireless module to be used in IPC mPCIe slot

o        Support both mPCIe Full-Mini and Half-Mini plated-hole

o        Support M.2 wireless module that USB base, PCIe base and Dual USB+PCIe mode

o        M.2 NGFF type 2242-D3-E E Key socket on board

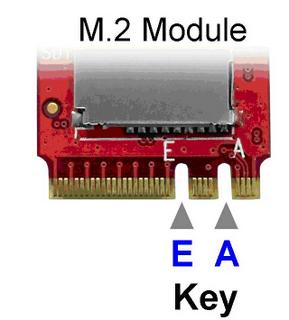

o        Support M.2 E Key and A-E Key WiFi, Bluetooth and Dual Band Wireless Module

o        Multiple plated-holes support M.2 type 2230 / 2242 / 3030 / 3042 module

o        PCIe & USB2.0 signal interface between miniPCIe and M.2 socket

o        100% OS-transparent hardware bridge converter to support Windows, MAC and Linux

o        Supports operating temperature range: -40 - 80 ºC

o        RoHS Compliant
