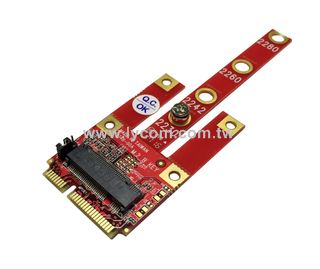

DT-134B

@

M.2 B Key to miniPCIe Adapter for 3G 4G WWAN M.2 Module

@

Install M.2 Advanced WWAN or SSD or PCIe Module on Industrial Computer Mini PCIe slot!

Support USB & PCIe & SATA base M.2 B Key or B-M Key Modules (CDMA, GPS, LTE, SATA SSD, NVMe SSD, M.2 PCIe Host)

@

FEATURES

@

o        Mini PCIe Adapter

o        Connect USB2.0, PCIe x1 and SATA signals of IPC mPCIe socket to M.2 B Key socket

o        Support both mPCIe Full-Mini and Half-Mini plated-hole

o        M.2 NGFF type 2280-D3-B B Key socket on board

@

@

@

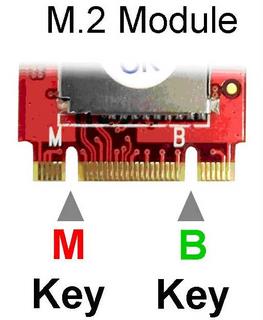

o        Support M.2 B Key and B-M Key Module, such as PCIe+USB2.0 base WWAN (CDMA, GPS, LTE) Module, PCIe Host Module, 80mm M.2 SATA SSD

@

@

@

@

o        Multiple plated-holes support M.2 type 2230 / 2242 / 2260 / 2280 / 3030 / 3042 module

o        USB2.0 & PCIe x1 or SATA signal interface between miniPCIe and M.2 B Key socket

o        Jumper setting select PCIe x1 or SATA signals from miniPCIe to M.2 Socket

o        WWAN Micro-SIM card holder on the back

o        100% OS-transparent hardware bridge converter to support Windows, MAC and Linux

o        Supports operating temperature range: -40 - 80 ºC

o        RoHS Compliant

o        Not support USB3.0 base WWAN module

@
