DT-131

¡@

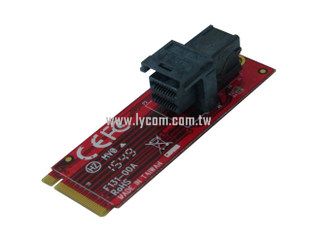

M.2 M Key Module with miniSAS HD 36P to U.2 NVMe SSD

¡@



¡@

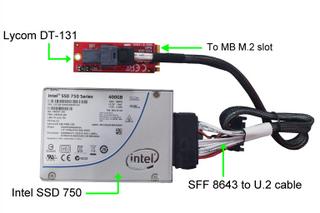

2260 M.2 M Key Module with SFF-8643 36Pin Mini SAS HD connection to U.2 2.5¡¨ PCIe-NVMe Extremely High Performance Enterprise-Class SSD!

¡@

FEATURES

¡@

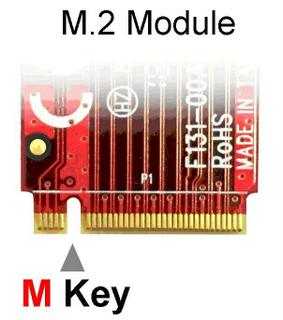

o        PCIe 4.0 x4 M.2 NGFF type 2260-D5-M M Key notch 75Pin 60mm PCBA module

¡@

¡@

¡@

o        Supports PCIe Gen4 and Gen3 PCIe-NVMe U.2 SFF-8639 2.5¡¨ SSD

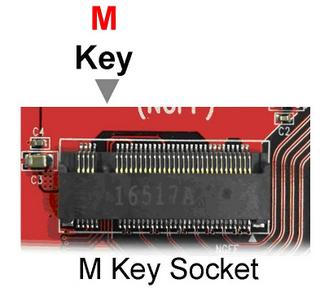

o        Supports PCIe 4.0, PCIe 3.0 main board with M.2 M Key socket

¡@

¡@

o        Compliant with PCI Express 4.0 x4 Lane

o        Mini-SAS HD SFF-8643 36Pin connector on board

o        Support PCIe L1 Power Management Substates with CLKREQ

o        Windows 10, Win8.1, Windows Server 2012 R2, Linux series, Fedora, SUSE, Ubuntu, Red Hat native driver support PCIe-NVMe SSD, no driver required

o        Mac Pro 2009, 2010 and 2012 models with High Sierra OS installed support PCIe-NVMe SSD

o        Fully RoHS compliant

¡@

¡@
