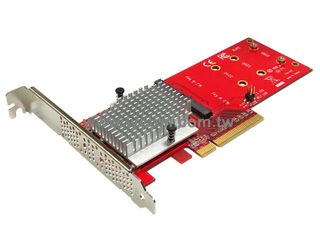

DT-130



Dual PCIe NVMe M.2 SSDs Carrier Adapter



Best & Easy Solution to install 2x Extremely High Performance Enterprise-Class PCIe 3.0 x4 NVMe or PCIe-AHCI M.2 SSD on board for Enthusiast Gaming and Workstation User!



FEATURES

.

o        Dual PCIe-NVMe or PCIe-AHCI M.2 SSDs work in main board PCIe x8 bus slot

o        PCI Express 3.0 x8 Lane Host adapter

o        Supports PCIe Gen3 M.2 NGFF 80mm, 60mm, 42mm SSD

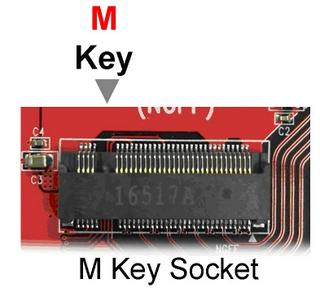

o        2x M.2 NGFF type 2280-D5-M M Key socket on board





o        Movable M.2 NGFF stand-off and multiple plated-holes supports type  2280, 2260 and 2242 SSD

o        Supports dual-sided SSD module 1.5mm component height on the top and bottom side

o        Compliant with PCI Express 3.0

o        Pin header on board for drive LED connection

o        Support L1 Power Management Substates with CLKREQ

o        Low Profile PCIe Form Factor

o        Regular size PCIe bracket on board and Low Profile bracket included

o        Windows 10, Win8.1, Windows Server 2012 R2, Linux series, Fedora, SUSE, Ubuntu, Red Hat native driver support PCIe-NVMe & PCIe-AHCI SSD, no driver required

      Fully RoHS compliant





*** SATA Based M.2 SSD module can NOT work with this PCIe Based Adapter
