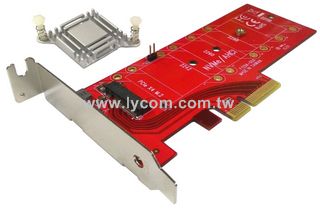

DT-129A

PCIe x4 Carrier Adapter for M.2 NVMe 110mm High Power SSD

Best Solution & Place to install an Extremely High Performance Enterprise-Class PCIe x4 NVMe or PCIe-AHCI 110mm High Power M.2 SSD in your Desktop for Enthusiast Gaming and Workstation Markets!

FEATURES

o        PCIe x4 NVMe and PCIe-AHCI M.2 SSD work in main board PCIe x4 bus slot

o        PCI Express x4 Lane Host adapter

o        Supports PCIe Gen4 and Gen3 M.2 NGFF 110mm, 80mm, 60mm, 42mm NVMe SSD

o        M.2 NGFF type 22110-D5-M M Key socket on board

o        Movable M.2 NGFF stand-off and multiple plated-holes supports type 22110, 2280, 2260 and 2242 SSD

o        Supports PCIe 4.0, PCIe 3.0 motherboard

o        Supports dual-sided SSD module 1.5mm component height on the top and bottom side

o        Compliant with PCI Express 4.0

o        Support PCIe L1 Power Management Substates with CLKREQ

o        Pin header on board for drive LED connection

o        Low Profile PCIe Form Factor and Low PCIe bracket on board

o        Additional Regular size bracket included in the package

o        Windows 10, Win8.1, Windows Server 2012 R2, Linux series, Fedora, SUSE, Ubuntu, Red Hat native driver support PCIe-NVMe & PCIe-AHCI SSD, no driver required

o        Mac Pro 2009, 2010 and 2012 models with High Sierra OS installed support PCIe-NVMe SSD

o        Supports operating temperature range: -40 - 80 ºC

o        Provides 3.3V5A High Power to M.2 PCIe SSD

o        Adjustable Multiple mounting holes for heat sink installation

o        Includes adjustable heat sink to low NVMe controller chipset temperature
