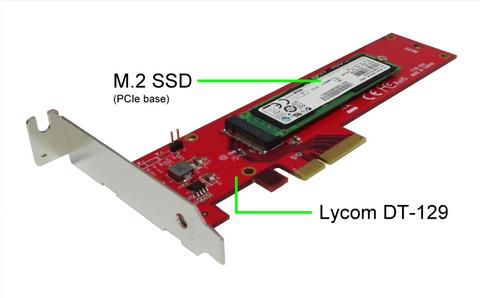

DT-129
PCIe x4 3.3V5A Host Adapter for M.2 NVMe 110mm SSD
FEATURES
o PCIe x4 NVMe and PCIe-AHCI M.2 SSD work in main board PCIe x4 bus slot
o PCI Express 4.0 x4 Lane Host adapter
o M.2 NGFF type 22110-D5-M M Key socket on board
o Supports PCIe Gen4 and Gen3 110mm, 80mm, 60mm, 42mm M.2 NVMe SSD
o Movable M.2 NGFF stand-off and multiple plated-holes supports type 22110, 2280, 2260 and 2242 SSD
o Supports PCIe 4.0, PCIe 3.0 motherboard
o Supports dual-sided SSD module 1.5mm component height on the top and bottom side
o Compliant with PCI Express 4.0
o Support PCIe L1 Power Management Substates with CLKREQ
o Pin header on board for drive LED connection
o Low Profile PCIe Form Factor
o Low Profile PCIe bracket on board and Regular size bracket included
o Windows 10, Win8.1, Windows Server 2012 R2, Linux series, Fedora, SUSE, Ubuntu, Red Hat native driver support PCIe-NVMe & PCIe-AHCI SSD, no driver required
o Mac Pro 2009, 2010 and 2012 models with High Sierra OS installed support PCIe-NVMe SSD
o Supports operating temperature range: -40 - 80 ºC
o Supports M.2 PCIe SSD High Power 3.3V5A
o Fully RoHS compliant
