DT-128

@

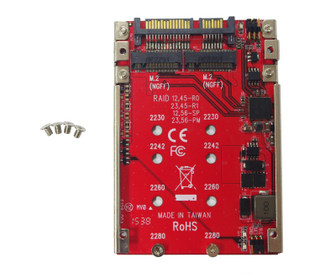

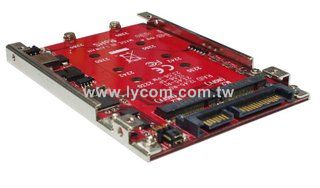

H/W RAID 2x M.2 SATA SSD to 2.5 7mm SATA III SSD

@

    @
@

Best Solution and Place to Install Fast Speed 2x M.2 NGFF SATA SSD as standard 2.5 inch 7mm SATA III  Drive with H/W RAID Big Drive, 2Drive, RAID 0, RAID 1 Features!

@

FEATURES

@

o        6Gbps SATA III H/W RAID Controller

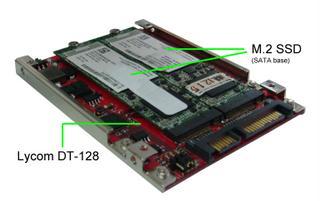

o        Convert 2x M.2 NGFF SATA based SSD to standard 2.5 7mm SATA drive

o    Supports SATA I, SATA II, SATA III Host port

o        Supports SATA hot plug and booting

o        Supports 6Gbps, 3Gbps SATA based M.2 NGFF 80/60/42/30 mm SSD

@

o        M.2 NGFF type 2280-D5-B B Key Socket on board

@

@

o        Movable M.2 NGFF stand-off and multiple plated-holes supports type 2280, 2260, 2242 and 2230 SSD

o        Supports dual-sided SSD module 1.5mm component height on the top and bottom side

o        Supports H/W RAID 0, RAID1, SPAN (Big Drive) and PM (2Drives) Modes

o    Not support PM (2Drives) Mode if SATA I or no Port Multiplier compatible SATA Host connection

o        22 pin SATA (Signals and Power) male connector on board

o        2x M.2 SSD ACT LED

o        Transparent to the operating system, no driver required on Windows, Mac and Linux

o        Hardware Jumper and Windows & Mac software GUI configure RAID modes

o        Provides Windows and Mac GUI to configure RAID modes and monitor RAID status

o        Includes 7mm height 2.5 drive metal frame with 8 mounting holes and 4 HDD screws

o        Compatible with 2.5 SATA drive dimension : 100.45mm x 69.85mm x 7mm

o        Fully RoHS compliant

@

*** PCIe NVMe & AHCI M.2 M Key SSD can NOT work with this M.2 B Key socket

@

@
