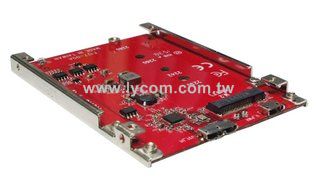

USB3.1 to M.2 NGFF SATA SSD Adapter with 2.5” Drive Frame






o        USB 3.1 micro B upstream connector on board

o        Supports USB3.1, USB3.0 and USB2.0 Host

o        Compliant with Universal Serial Bus 3.1 Specification Revision 1.0

o        Supports SuperSpeed+ (10 Gbps), SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transaction

o        Compliant with Serial ATA Specification Revision 2.6

o        Supports Serial ATA transfer rate of 6.0 Gbps

o        Supports ATA/ATAPI Packet Command Set

o        Supports ATA/ATAPI LBA 48 Addressing mode

o        Supports 6Gbps, 3Gbps SATA based M.2 NGFF 80/60/42/30mm SSD



o         M.2 NGFF type 2280-D5-B B Key Socket on board



o        Movable M.2 NGFF stand-off and multiple plated-holes supports type 2280, 2260, 2242 and 2230 SSD

o        Supports dual-sided SSD module 1.5mm component height on the top and bottom side

o        Includes 2.5 “ hard drive 7mm height metal frame and screws

o        Dimension of PCBA with 2.5” frame : 100.45mm x 69.85mm x 7mm

o        Support Windows, Mac and Linux, no driver required

o        PCBA powered by USB3.1 Bus 5V

o        If USB3.1 Host low power, optional U_PWR power input can automatically provide M.2 SSD high power from external max 5V3A micro-B power adapter instead of USB3.1 Bus

      Fully RoHS compliant
