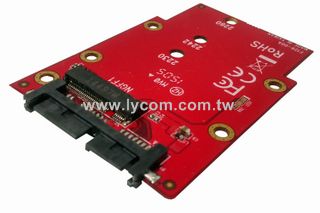

DT-126
Convert 60mm M.2 NGFF SATA SSD to 1.8” SATA Drive
Discontinued!
FEATURES
o Convert 3.3V M.2 NGFF SATA based SSD to standard 3.3V 1.8” SATA drive Form Factor
o Supports 6Gbps, 3Gbps SATA based M.2 NGFF 60mm, 42mm, 30mm SSD
o M.2 NGFF type 2260-D5-B connector on board
o Movable M.2 NGFF stand-off and multiple plated-holes supports type 2260, 2242 and 2230 SSD
o Supports dual-sided SSD module 1.5mm component height on the top and bottom side
o 16Pin micro SATA (Signals and Power) male connector on board
o M.2 NGFF SATA SSD can be the primary bootable device containing the OS and application.
o Operating system independent and no driver required
o Supports any OS like Windows, Mac and Linux
o Supports industrial operating temperature range: -40 - 85 ºC
o Fully RoHS compliant
