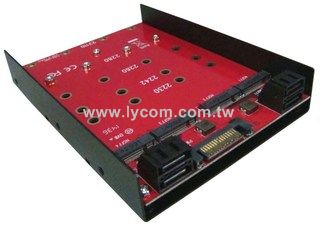

DT-124

¡@

Install 4x M.2 NGFF SATA SSD in 3.5¡¨ Form Factor

Discontinued!

FEATURES

¡@

o        Convert SATA based M.2 NGFF SSD to standard 3.5¡¨ SATA drive Form Factor

o        Supports 6Gbps, 3Gbps SATA based M.2 NGFF 110mm, 80mm, 60mm, 42mm, 30mm SSD

o        M.2 NGFF type 22110-D5-B connector on board

o        Movable M.2 NGFF stand-off and multiple plated-holes supports type 22110, 2280, 2260, 2242 and 2230 SSD

o        Supports dual-sided SSD module 1.5mm component height on the top and bottom side

o        4x 7Pin SATA data and 1x 15Pin SATA Power connectors on board

o        M.2 NGFF SATA SSD can be the primary bootable device containing the OS and application.

o        Includes 3.5 ¡§ drive metal frame

o        Transparent to the operating system and no driver required

o        Supports any OS like Windows, Mac and Linux

o        SSD & PCBA power from SATA 12V input

o        Provides M.2 NGFF SSD Max 3.3V/4A power source

o        Fully RoHS compliant

¡@
