DT-120

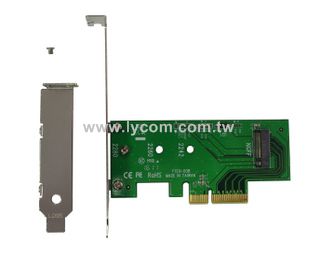

PCIe 3.0 x4 Host Adapter for M.2 NGFF PCIe SSD installed in Main Board












Best & Easy Solution to install an Extremely High Performance Enterprise-Class PCIe-NVMe or PCIe-AHCI M.2 SSD in your Desktop for Enthusiast Gaming and Workstation Markets!



FEATURES

o        Convert M.2 NGFF PCIe based SSD to work in main board PCIe x4 bus slot

o        PCI Express 3.0 x4 Lane Host adapter

o        Supports PCIe Gen3 and PCIe Gen2 M.2 80mm, 60mm, 42mm NVMe SSD





o        M.2 NGFF type 2280-D5-M M Key socket on board







o        Movable M.2 NGFF stand-off and multiple plated-holes supports type 2280, 2260 and 2242 SSD

o        Supports PCIe 3.0 ,PCIe 2.0 and PCIe 1.0 motherboard

o        Supports dual-sided SSD module 1.5mm component height on the top and bottom side

o        Compliant with PCI Express 3.0

o        Pin header on board for drive LED connection

o        Low Profile PCIe Form Factor

o        Regular size PCIe bracket on board and Low Profile bracket included

o        Transparent to the operating system and no driver required

o        Windows 10, Win8.1, Windows Server 2012 R2, Linux series, Fedora, SUSE, Ubuntu, Red Hat native driver support PCIe-NVMe & PCIe-AHCI

o        Microsoft (https://support.microsoft.com/en-us/kb/2990941) Update to support NVM Express by using native drivers in Windows 7 or Windows Server 2008 R2

o        Mac Pro 2009, 2010 and 2012 models support PCIe-AHCI SSD only

o        Supports operating temperature range: -40 - 80 ºC

o        M.2 PCIe SSD power from motherboard PCIe bus slot 3.3V

o        Fully RoHS compliant





*** SATA Based M.2 SSD module can NOT work with this PCIe Based Adapter



*** DT-120 Installation Video : https://www.youtube.com/watch?v=6vlkQUyB22c
