ST-307-P4

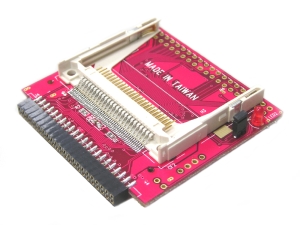

IDE44 – CF Bridge (Connector Mode)

Convert IDE port to support CF Card !

Plug This bridge board to standard IDE port and make your PC system to support CompactFlash device.

This is a convenient interface that allows CompactFlash modules to be used in any system that has a standard IDE 44 pin connector.

　

FEATURES

  • 44 pin IDE standard Port
  • Supports IDE Master and Slave
  • Support CompactFlashTM cards (Type I & II) or a IBM MicrodriveTM
  • IDE can NOT support the hot-plug of Compact Flash
  • Transparent to the operating system and does not require any drivers
  • The CF card can be the primary bootable device containing the OS and application
  • Fully RoHS compliant
