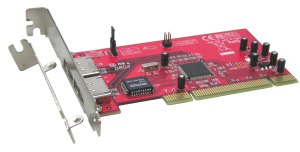

ST-118

eSATA 1.5Gbps External 2Ports Low Profile PCI Adapter

Add Low Profile PCI 1.5Gbps External eSATA 2Ports on your PC System to Support Mobile storage devices!

FEATURES

o        Independent external eSATA two ports

o        Serial ATA data rates 1.5Gbps

o        48 bits LBA can Break Capacity-Limit to Support HDD larger than 137GB

o        Fully compliant with Serial ATA 1.0a specifications

o        Supports Spread Spectrum in receiver

o        Independent 256-byte FIFOs (32 bit * 64 deep) per Serial ATA channel for host reads and writes

o        Compliant with PCI Specification, revision 2.3 Integrated PCI DMA engines

o        32 bit, 66MHz fully compliant PCI host interface

o        Low Profile PCI form factor

o  Includes Low profile PCI and Regular size PCI two Brackets

o        Two LED Pin headers on board for HDD LED connection

o        Jumper to enable / disable on board SATA BIOS

o        Completely with drivers for 64bit / 32bit Windows 7, Vista, 2000, 2003 server, XP, 98, and ME

o        Linux kernel version of 2.4.18-14 or later has built-in driver support

o        Chipset : SiliconImage SiI3x12

      o   Fully RoHS compliant

SPECIFICATION

o        Bus Architecture:   Low Profile 32bit PCI Bus (MD1)

o        Dimension:         120mm x 46mm

o        PCB:              4 Layers / FR-4 94V0 / 0.5 oz / 1.6mm

o        SATA Ports:       2 Serial ATA Ports

o        Temperature:      Operating       +5 ℃  to  ＋45 ℃

                      Non Operating －25 ℃  to  ＋70 ℃

o        Humidity:          Operating        20％ to  80％

                      Non Operating    15% to  90％

o        EMC Compliance:  EN55022/1998, EN55024/1998 (European Community)

                                          FCC Part 15 Class B (DoC) (US)
