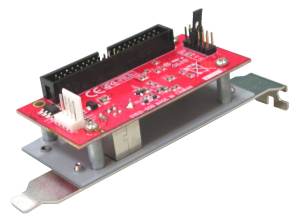

UB-102PC

2Bay IDEx2 Enclosure Board for PC Case (to USB2.0 Host)

¡@

Use very popular computer case and 2 IDE drives as a USB2.0 2Bay Storage system with 1 BigDisk (JBOD) or 2Disks configuration!



Supports PCI bracket for PC Case mounting¡@

FEATURES

  • Supports PCI bracket and uses dominant PC Case as MultiBay Storage System
  • Control and Convert 2 internal IDE hard drive to USB 2.0
  • USB2.0 B-Type upstream connector supports High transfer rate of 480Mbps
  • Compliant with Universal Serial Bus Specification Revision 2.0 (Data Rate 1.5 /12 /480Mbps)

  • Compliant with Open Host Controller Interface Specification for USB Rev 1.0a
  • Compliant with ATA specifications
  • Three LED Pin Headers for 2 devices & Power On
  • Supports three operation modes: 2Disks, 1Disk (JBOD)
  • Maximum logical drive size up to 2 TByte
  • Hot-plug of USB2.0

  • Bridge Board with Metal bracket and Mounting hole of SCSI-1 (Centronic 50pin) Form Factor for 2bay Disk Array

  • No software driver needed for Windows ME, 2000, 2003, XP and Mac OS

  • Window 98 SE Driver available

  • Fully RoHS compliant
