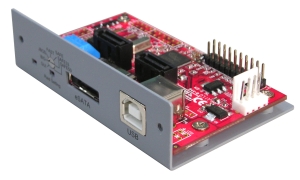

ST-132RM
HardWare RAID SATA II 3Gbps DuoDrives to eSATA and USB2.0 Host Bridge Board (for DiskArray)
Hardware RAID System of two SATA II – 3Gbps Drives that works with eSATA or USB2.0 host!
Install this board
inside of your External Disk Array 2bay case and make 2 units of SATA hard
drive be a Hardware RAID (Raid0, Raid1, JBOD, BIG, SAFE50, SAFE33) System.
Easy Hardware RAID setting by Rotary DIP Switch Design.
Supports SCSI-1Centronic 50pin Form Factor and Rack Mount system.
FEATURES
- Hardware
RAID Controller for SATA II –3Gbps 2 Hard Drives
- Easy
Hardware RAID setting by Rotary DIP Switch
- Compatible
with PM aware and non-PM aware hosts, Work with any SATA II or SATA I
Host Port
- Drive
locking feature makes the lose drives be inaccessible by other
computers
- 3Gbps
high speed transfer rate
- eSATA
and USB B-type connector for host connection
- Support
6 RAID modes: Raid 0 (FAST, Stripping), Raid 1 (SAFE, Mirroring),
Concatenation (BIG), JBOD, SAFE50 and SAFE33
- SAFE50
creates two volumes across two drives, with half of each physical
drive being allocated to each volume. One volume is in SAFE mode (RAID
1) and the other is in BIG (Concatenated) mode.
- SAFE33
creates two volumes, with 1/3 of physical space being dedicated to
SAFE mode and 2/3 to BIG mode.
- No
driver, BIOS or software required
- The
GUI can monitor the status and activities of RAID Disks
- Supports
NCQ
- Host
and device status and activity LED’s
- 1.5Gbps
and 3.0Gbps PHY support with auto-negotiation
- Compliant
with SATA II external specification and 2-meter cable support
- Hot-plug
and ATAPI support
- Complies
with USB 2.0 specification with 480 Mb/s
- Compatible
with OHCI / UHCI / EHCI hosts
- Mandatory
SMART commands available
- Converter Board with Metal bracket and Mounting hole of SCSI-1 (Centronic 50pin) Form Factor for 2bay Disk Array and Rack Mount system
- Fully RoHS compliant
- Chipset : SiliconImage SiI5744
