ST-132PC

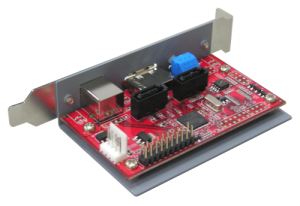

H/W RAID 2x SATA Enclosure Board for PC Case (to eSATA and USB2.0 Host)

Discontinued!

FEATURES

  • Supports PCI bracket and uses dominant PC Case as MultiBay Storage System
  • Hardware RAID Controller for SATA II –3Gbps 2 Hard Drives
  • Easy Hardware RAID setting by Rotary DIP Switch
  • Compatible with PM aware and non-PM aware hosts, Work with any SATA II or SATA I Host Port
  • Drive locking feature makes the lose drives be inaccessible by other computers
  • 3Gbps high speed transfer rate
  • eSATA and USB B-type connector for host connection
  • Support 6 RAID modes: Raid 0 (FAST, Stripping), Raid 1 (SAFE, Mirroring), Concatenation (BIG), JBOD, SAFE50 and SAFE33
  • SAFE50 creates two volumes across two drives, with half of each physical drive being allocated to each volume. One volume is in SAFE mode (RAID 1) and the other is in BIG (Concatenated) mode.
  • SAFE33 creates two volumes, with 1/3 of physical space being dedicated to SAFE mode and 2/3 to BIG mode.
  • No driver, BIOS or software required
  • The GUI can monitor the status and activities of RAID Disks
  • Supports NCQ
  • Host and device status and activity LED’s
  • 1.5Gbps and 3.0Gbps PHY support with auto-negotiation
  • Compliant with SATA II external specification and 2-meter cable support
  • Hot-plug and ATAPI support
  • Complies with USB 2.0 specification with 480 Mb/s
  • Compatible with OHCI / UHCI / EHCI hosts
  • Mandatory SMART commands available
  • Converter Board with Metal bracket and Mounting hole of SCSI-1 (Centronic 50pin) Form Factor for 2bay Disk Array and Rack Mount system
  • Fully RoHS compliant
  • Chipset : SiliconImage SiI5744
