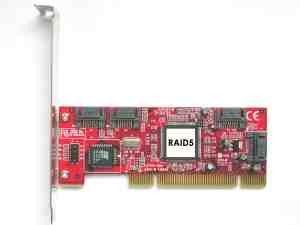

ST-127

SATA 4Ports RAID Low Profile PCI Host Adapter

Discontinued!

¡@

ST-124 Instead!
¡@

FEATURES

¡@

o        Independent four Serial ATA interface ports

o        Fully compliant with Serial ATA 1.5G specifications

o        Compliant with PCI Specification, revision 2.2

o        32 bit, 33/66MHz fully compliant PCI host interface

   o    48 bits LBA can Break Capacity-Limit to Support HDD max 144,115,188GB

o        Supports RAID 0, RAID 1, RAID 5, RAID 0+1, JBOD

o        JBOD is a virtual disk that combines all disk drives as one entire disk drive.

o        Supports ATAPI commands

o        Supports Spread Spectrum in receiver

o        Independent 256-byte FIFOs (32 bit * 64 deep) per Serial ATA channel for host reads and writes

o        SATA Hot-plug capability

o        Four Pin header on board for LED connection

o        Supports 64bit / 32bit Windows 7, Vista, 2000, XP, Server 2003

o        Low Profile Form Factor

o        Regular size PCI bracket on card and additional Low Profile PCI Bracket included

o        Fully RoHS compliant

o        Chipset : SiI3114

¡@
