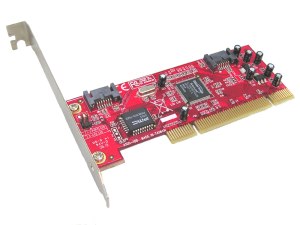

ST-100
SATA 2 Ports Low Profile PCI Host Adapter
Low Profile PCI 1.5Gbps Native SATA internal 2Ports!
FEATURES
¡@
o Independent internal two ports high speed Native Serial ATA
o Serial ATA data rates 1.5Gbps
o 48 bits LBA can Break Capacity-Limit to Support HDD larger than 137GB
o Fully compliant with Serial ATA 1.0a specifications
o Supports Spread Spectrum in receiver
o Independent 256-byte FIFOs (32 bit * 64 deep) per Serial ATA channel for host reads and writes
o Compliant with PCI Specification, revision 2.3 Integrated PCI DMA engines
o 32 bit, 66MHz fully compliant PCI host interface
o Low Profile PCI form factor
o Includes Low profile PCI and Regular size PCI two Brackets
o Two LED Pin headers on board for HDD LED connection
o Jumper to enable / disable on board SATA BIOS
o Completely with drivers for 64bit / 32bit Windows 7, Vista, 2000, 2003 server, XP, 98, and ME
o Linux kernel version of 2.4.18-14 or later has built-in driver support
o Chipset : SiliconImage SiI3x12
o Fully RoHS compliant
¡@
SPECIFICATION
¡@
o Bus Architecture: Low Profile 32bit PCI Bus (MD1)
¡@
o Dimension: 120mm x 64mm
¡@
o PCB: 4 Layers / FR-4 94V0 / 0.5 oz / 1.6mm
¡@
o SATA Ports: 2 Serial ATA Ports
¡@
o Temperature: Operating +5 ¢J to ¡Ï50 ¢J
Non Operating ¡Ð25 ¢J to ¡Ï70 ¢J
¡@
o Humidity: Operating 20¢H to 80¢H
Non Operating 15% to 90¢H
¡@
o EMC Compliance: EN55022/1998, EN55024/1998 (European Community)
FCC Part 15 Class B (DoC) (US)
¡@
o SATA Connector:
S1¡V GND, S2 ¡V A+, S3 ¡V A-,
S4 ¡V GND, S5 ¡V B-, S6 ¡V B+, S7 ¡V GND
¡@
o Chipset: Silicon Image
¡@
o Power Consumption: 5V / 470mA
