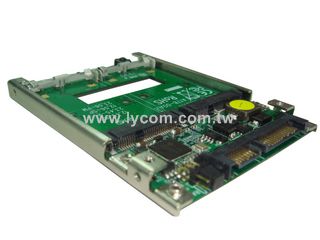

ST-178

H/W RAID 2x mSATA SSD to 2.5” 7mm SATA III SSD

Best Solution that Easily Latch and Retain Fast Speed 2x mSATA SSD to normally standard 7mm 2.5 inch SATA III Solid State Drive with H/W RAID functionally!

FEATURES

o        6Gbps SATA III H/W RAID Controller

o        Convert 2x Full Size SATA III (6Gbps) mSATA SSD to 7mm 2.5” drive

o        Supports SATA I, SATA II, SATA III Host port

o        Supports H/W RAID 1, SPAN (Big Drive) and PM (2Drives) Modes

o    Not support PM (2Drives) Mode if SATA I or no Port Multiplier compatible SATA Host connection

o        Supports SATA hot plug

o        100% Compatible with 2.5” SATA drive mechanical spec

o        22 pin SATA (Signals and Power) male connector on board

o        The mSATA SSD can be the primary bootable device containing the OS and application.

o        Latch type mSATA connector on board, no need the screw to retain mSATA SSD

o        Transparent to the operating system, no driver required on Windows, Mac and Linux

o        Hardware Jumper and Windows & Mac software GUI for RAID mode configuration

o        Provides Windows and Mac GUI to configure RAID modes and monitor RAID status

o        Includes 7mm height 2.5 “ drive metal frame with 8 mounting holes and 4 HDD screws

o        Dimension of PCBA with 2.5” frame : 100.45mm x 69.85mm x 7mm

o        Fully RoHS compliant
