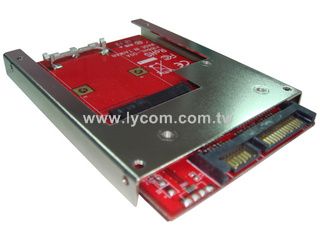

ST-168mL-7 ¡@ Latch and Retain mSATA SSD as 7mm 2.5¡¨ SATA Drive |
|
|
Best Solution that Easily Latch and Retain Fast Speed mSATA SSD as normally standard 7mm 2.5 inch SATA Solid State Drive! |
FEATURES ¡@ o Convert Full Size mSATA SSD to 2.5¡¨ Form Factor o Supports SATA I, SATA II and SATA III (6Gbps) o 100% Compatible with 2.5¡¨ SATA drive mechanical spec o 22 pin SATA (Signals and Power) male connector on board o The mSATA SSD can be the primary bootable device containing the OS and application. o Latch type mSATA connector on board, no need the screw for the retention of mSATA SSD o Transparent to the operating system and no driver required o Supports any OS like Windows, Mac and Linux o Includes 7mm height 2.5 ¡§ drive metal frame with 8 mounting holes and 4 HDD screws o Dimension of PCBA with 2.5¡¨ frame : 100.45mm x 69.85mm x 7mm o SSD & PCBA power from SATA 5V input o Provides mSATA SSD Max 3.3V/2A power source o Supports industrial operating temperature range: -40 - 85 ºC o Fully RoHS compliant ¡@ |
