Pi-101

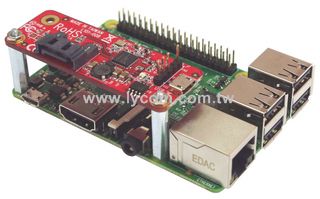

Raspberry Pi USB to SATA Converter Board



　

Product without Raspberry Pi B+

　

 Easy Install and Utilize any type of SATA device to your embedded Raspberry Pi!

FEATURES

　

o        Connect Raspberry Pi USB to SATA device

o        Supports any type of SATA Device (SSD, DVD, DVD-RAM, MO, CD-ROM, CD-RW, Hard Disk)

o        Supports SATA III, SATA II and SATA I drive

o        Compliant with Serial ATA Specification Revision 2.6

o        Supports Serial ATA transfer rate of 6.0 Gbps

o        Supports ATA/ATAPI Packet Command Set

o        Supports ATA/ATAPI LBA 48 Addressing mode

o        Compliant with Universal Serial Bus Specification Revision 2.0 (Data Rate 1.5/12/480 Mbps)

o        Compliant with Open Host Controller Interface Specification for USB Rev 1.0a

o        Compliant with Enhanced Host Controller Interface Specification for USB Rev 0.95

o        Both USB micro-B connector and USB 5Pin Pinheader on board for Pi connection

o        USB2.0 5Pin Pin Header Assignment: 5V, D-, D+, NC, GND

o        Includes Multi-Pi mounting accessory of standoff & nut & screw

o        Fully RoHS compliant
