Pi-100

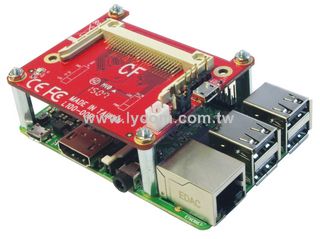

Raspberry Pi USB to Compact Flash Converter Board



Product without Raspberry Pi B+

 Easy install and utilize Compact Flash Drive to your embedded Raspberry Pi!

FEATURES

　

o        Connect Raspberry Pi USB to CF storage device

o        Support CompactFlashTM cards (Type I & Type II) or a IBM MicrodriveTM

o        Support CompactFlash spec up to Ver 6.0 Ultra DMA mode

o        Compliant with Universal Serial Bus Specification Revision 2.0 (Data Rate 1.5/12/480 Mbps)

o        Compliant with Open Host Controller Interface Specification for USB Rev 1.0a

o        Compliant with Enhanced Host Controller Interface Specification for USB Rev 0.95

o        Both USB micro-B connector and USB 5Pin Pinheader on board for Pi connection

o        USB2.0 5Pin Pin Header Assignment: 5V, D-, D+, NC, GND

o        Jumper selection either power wafer of external 5V sufficient power or 5V USB bus power to CF & PCBA

o        On board activity LED for CF access

o        Includes Multi-Pi mounting accessory of standoff & nut & screw

o        Fully RoHS compliant
