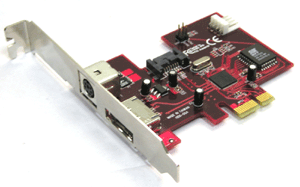

PE-100

eSATA II – 3Gbps 1 External & 1 Internal 2Ports Low Profile PCI-Express Host with 5V &12V DC output for Enclosure

2Ports 3Gbps SATA II with NCQ, Port Multiplier, 5V/1.5A & 12V/2A DC Output in PCI Express 1X host!

Best HBA Solution for External Storage Provider who don’t need to bundle DC Power Adapter or Self-Power.

FEATURES

  • One eSATA II Connector on board

  • 48 bits LBA can Break Capacity-Limit to Support HDD larger than 137GB
  • Sufficient power current 1.5A5V and 2A12V to supply External Device
  • Supports 1-lane 2.5Gbps PCI Express
  • Includes 2 Brackets (Low profile PCI and Regular size PCI Brackets)
  • Low Profile PCI Form Factor
  • Hot-plug capability
  • Supports SATA II transfer rate of 3.0Gbps
  • Fully compliant with Serial ATA 1.0 specifications
  • Supports two independent Serial ATA channels
  • Independent Link, Transport, and data FIFO
  • Independent command fetch, scatter/gather, and command execution
  • Supports Legacy Command Queuing (LCQ)
  • Supports Native Command Queuing (NCQ)
  • Supports Non-zero offsets NCQ
  • Supports Out of order data delivery NCQ
  • Supports FIS-based switching with Port Multipliers
  • 31 Commands and Scatter/Gather Tables per Port
  • Two Pin headers on board for LED connection
  • Mini DIN Power Connector on board to provide 12V and 5V DC power output for External Mobile Devices
  • Completely with drivers for Windows NT, Windows 2000, Windows XP and Windows Server 2003
  • Supports 64bit / 32bit Windows Vista
  • Mac OS X v10.4 Non-booting driver supported by SiliconImage SiI3132.
  • Linux 32bit / 64bit drivers supported for Fedora Core2, Fedora Core3, Fedora Core4, RHEL 4.0, RHEL 4.0 Up1, SuSE 9.0 SP1 RC5, SuSE Pro 9.3 by SiliconImage SiI3132.
  • Fully RoHS compliant
  • Chipset : SiI3132
