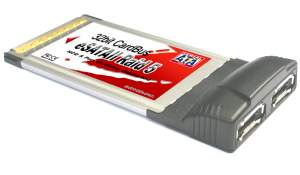

PC-112R5

Raid5 eSATA II-150 2Ports CardBus (Support NCQ & Port Multiplier)

Enjoy External & Mobile SATA2 Cardbus with NCQ, Port Multiplier, Raid5, Raid10, Raid0, Raid1 supported!

RAID 5 (Distributed Parity RAID), JBOD (Just Bunch of Disks), RAID 0 (Striping), RAID 1 (Mirroring) and RAID 0+1 (mirrored-stripping) improve the data performance and provide the data redundancy and rebuilding.

FEATURES

  • Two SATA2 Shielding & Durable connectors (eSATA)
  • Supports FIS-based switching with Port Multipliers to access 10 units storage drives
  • 48 bits LBA can Break Capacity-Limit to Support HDD larger than 137GB
  • PC Card 32 bit CardBus fully compliant
  • Dual high speed Serial ATA interface ports, each supporting Serial ATA Generation 2 transfer rate of 1.5Gb/s
  • Fully compliant with Serial ATA 1.0a and Serial ATA II Extensions to Serial ATA 1.0a Specifications revision 1.1
  • Two LEDs indicate for HDD access
  • Hot-plug capability
  • Supports First-party DMA commands for Native Command Queuing
  • Plesiochronous, Single PLL architecture, 1 PLL for 4 ports
  • RAID 5 (Distributed Parity RAID) has Highest Read data transaction rate and Good aggregate transfer rate
  • JBOD is a virtual disk that combines all disk drives as one entire disk drive
  • Provides RAID 0 (Stripping) to greatly increase the performance of data transfer by simultaneously writing data to multiple drives
  • Provides RAID 1 (Mirroring) to protect the data from a disk failure by writing identical data on 2 drives
  • RAID 0+1 (Mirrored-Stripping) combine both Striping and Mirroring technologies to provide both the performance enhancements that come from Striping and the data availability and integrity that comes from Mirroring
  • Must cold booting if RAID drive unplugged
  • Completely with drivers for Windows NT 4.0, Windows 2000 and XP
  • Supports 64bit / 32bit Windows Vista

  • Supports Mac OS X v10.3.9, v10.4. See SiliconImage SiI3124.

  • Linux 32bit / 64bit drivers support for RHEL 4.0 Up2, RHEL 4.0 Up3, SuSE9.0 SP2, SuSE9.0 SP3. See SiliconImage SiI3124.
