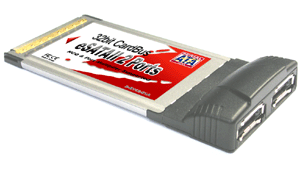

PC-112

eSATA II-150 2Ports CardBus Expander to 10 Units Multi-Drives (NCQ & Port Multiplier)

Enjoy External & Mobile 1.5Gbps SATA2 with NCQ & Port Multiplier support!

Add 1,500Mbps Serial ATA 2 Ports on your Notebook Computer to Access External 10 pieces Storage Devices and Support HDD larger than137GB at Very High Performance

FEATURES

  • Two SATA2 Shielding & Durable connectors (eSATA)
  • Supports FIS-based switching with Port Multipliers to access 10 units drive
  • 48 bits LBA can Break Capacity-Limit to Support HDD larger than 137GB
  • PC Card 32 bit CardBus fully compliant
  • Dual high speed Serial ATA interface ports, each supporting Serial ATA Generation 2 transfer rate of 1.5Gb/s
  • Fully compliant with Serial ATA 1.0a and Serial ATA II Extensions to Serial ATA 1.0a Specifications revision 1.1
  • Two LEDs indicate for HDD access
  • Hot-plug capability
  • Supports First-party DMA commands for Native Command Queuing
  • Plesiochronous, Single PLL architecture, 1 PLL for 4 ports
  • Completely with drivers for Windows NT 4.0, Windows 2000 and XP

  • Supports 64bit / 32bit Windows Vista

  • Mac OS X v10.4 Non-booting driver supported by SiliconImage SiI3124.

  • Linux 32bit / 64bit drivers supported for Fedora Core2, Fedora Core3, Fedora Core4, RHEL 3.0 Up2, RHEL 4.0, RHEL 4.0 Up1, SuSE 9.0 SP1 RC5, SuSE Pro 9.3 by SiliconImage SiI3124.

  • Fully RoHS compliant
