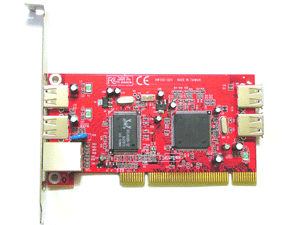

NW-200

Low Profile Giga LAN + USB 2.0 4 Port PCI Host



Low Profile PCI SLOT SAVER Technology TM Integrates 1 Port of Gigabit Ethernet (1000Mbps, 100 Mbps, 10 Mbps) and 4 Ports of USB 2.0 (1.5 / 12 / 480 Mbps) in one Low Profile PCI Host Adapter to upgrade your computer to have all advanced features!

  • Low Profile PCI Form factor

  • Provides Gigabit Ethernet 10/100/1000Base-T

  • Provides Four USB2.0 / USB1.1 ports (2 External + 2 Internal Ports)

  • Supports Windows Drivers

FEATURES

  • Provides 2 Brackets to Support Low Profile PCI and Regular size PCI in one Low Profile PCI card
  • Fully RoHS compliant
  • Supports Windows Vista
  • Supports Mac OS v9.x, v10.2, v10.3, v10.4

1. PCI

  • Compliant with PCI Specification, revision 2.2

  • 32 bit, 33MHz fully compliant PCI host interface

  • Integrated PCI DMA engine

2. 1000Base-T Gigabit Ethernet

  • Fully compliant with IEEE 802.3 (10Base-T Ethernet), IEEE 802.3u (100Base-TX Fast Ethernet), IEEE 802.3z (1000Base-T Gigabit Ethernet)

  • Supports Ethernet 10Mbps (half-duplex), Ethernet 20Mbps (full-duplex), Fast Ethernet 100Mbps (half-duplex), Fast Ethernet 200Mbps (full-duplex), Gigabit 1000Mbps (full-duplex) and Gigabit 2000Mbps (full-duplex)

  • RJ-45 Port offer high speed transmission over CAT 5 UTP cable

  • Green LED indicator for 10/100/1000 Link

  • Yellow LED indicator for ACT (Tx / Rx)

  • Auto-Negotiation with Next page capability

  • Supports pair swap/polarity/skew correction

  • Crossover Detection & Auto-Correction

  • Wake-on-LAN and remote wake-up support

  • Microsoft® NDIS5 Checksum Offload (IP, TCP, UDP) and largesend offload support

  • Supports Full Duplex flow control (IEEE 802.3x)

  • Supports IEEE 802.1Q VLAN tagging

  • 8K Transmit FIFO and 64K Receive FIFO support

  • Supports power down/link down power saving

3. USB 2.0

  • Provides Four USB2.0 / USB1.1 ports ( 2 External + 2 Internal)

  • Compliant with Universal Serial Bus Specification Revision 2.0 (Data Rate 1.5/12/480 Mbps)

  • Compliant with Open Host Controller Interface Specification for USB Rev 1.0a

  • Compliant with Enhanced Host Controller Interface Specification for USB Rev 0.95

  • All USB ports can handle high-speed (480 Mbps), full-speed (12 Mbps), and low-speed (1.5 Mbps) transaction

  • Chipset : NEC
