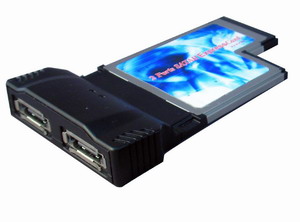

KW-5652E

eSATA II – 3Gbps Dual Ports ExpressCard/54 Host Adapter

Add 2Ports eSATA II 3Gbps with NCQ, Port Multiplier support on ExpressCard/54 Notebook

FEATURES

• 3Gbps eSATA 2 Ports

• PCI-e based ExpressCard/54 Form Factor

• 48 bits LBA can Break Capacity-Limit to Support HDD larger than 137GB

• 1-lane 2.5Gbps ExpressCard/34 Host Adapter

• Hot-plug capability

• Supports SATA II transfer rate of 3.0Gbps

• Fully compliant with Serial ATA 1.0 specifications

• Supports two independent Serial ATA channels

• Independent Link, Transport, and data FIFO

• Independent command fetch, scatter/gather, and command execution

• Supports Legacy Command Queuing (LCQ)

• Supports Native Command Queuing (NCQ)

• Supports Non-zero offsets NCQ

• Supports Out of order data delivery NCQ

• Supports FIS-based switching with Port Multipliers

• 31 Commands and Scatter/Gather Tables per Port

• Two LEDs indicate for HDD access

• Completely with drivers for Windows Vista, 2000, XP and 2003

• Supports 64bit / 32bit Windows Vista

• Fully RoHS compliant

• Mac OS X v10.4.9, v10.4.10, V10.5.1 Non-booting driver supported by SiliconImage SiI3132.

• Linux 32bit / 64bit drivers supported for Fedora Core2, Fedora Core3, Fedora Core4, RHEL 4.0, RHEL 4.0 Up1, SuSE 9.0 SP1 RC5, SuSE Pro 9.3 by SiliconImage SiI3132.
