IO-112

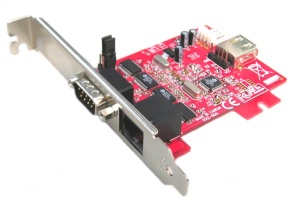

RS232 2Ports Low Profile USB-Based Host Adapter (with DB9M 5V Bus Power)
FEATURES
¡@
o Two 16550 High performance UART (RS232) serial channels
o Occupies one PCI or PCIe bus slot
o Low Profile PCI Form Factor
o Includes Low Profile PCI & Regular size PCI two brackets
o Both USB A type and USB pin header connector on board to host connection
o One RS232 DB9M and one RS232 10pin RJ45 serial ports on board
o Includes one 10pin RJ45 ¡V DB9M Bridge cable for 2nd DB9M port
o 5VDC Power output from each DB9M Port for POS device use application
o 2 Jumpers Individually enable / disable 5VDC output for each DM9M Port
o On Board Molex mini 4Pin Power connector for sufficient DB9M 5V bus power from PC power supply
o Supports data transfer rate up to 230 Kbps
o USB based UART controller, an available motherboard USB port is required
o Supports 32bit/64bit Windows 7, Vista, XP, 2000, ME, 98SE
o Fully RoHS compliant ¡@
¡@
