6Gbps SATA III 1x mSATA + 1x SATA Low Profile PCIe Host Adapter
¡@
1x mSATA + 1x SATA 2Ports 6Gbps AHCI SATA III PCIe 2.0 host board to support HybridDrives, Hardware Raid0, Raid1, NCQ & Port Multiplier
| ¡@ ¡@ ¡@ |
|
|
¡@ ¡@ 6Gbps SATA III 1x mSATA + 1x SATA Low Profile PCIe Host Adapter ¡@
|
1x mSATA + 1x SATA 2Ports 6Gbps AHCI SATA III PCIe 2.0 host board to support HybridDrives, Hardware Raid0, Raid1, NCQ & Port Multiplier |
|
HybridDrives Connection: ¡@ ¡@ |
|
|

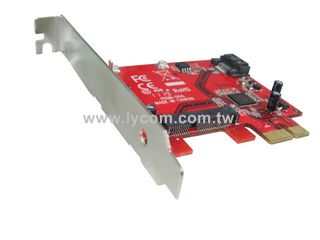

PE-115m ¡@
|
PE-115H ¡@
|
| ¡@ | |
| ¡@ | |
| ¡@ | |
| ¡@ | |
| ¡@ |
|
HybridDrives Technology ¡@ ¡@ HybridDrives technology bring in a break-through success in our new generation 6Gb/s SATA Controllers. Combination of 1 hard drive and 1 SSD as a single logical disk, HybridDrives offers an innovative technology to allow users to take full advantage of low cost, high capacity and high performance benefits. It get 80% of SSD performance (PCMark) at 1/3 the SSD cost.
HybridDrives automatically identify LBA ranges across both the SSD and HDD so that the user experience is exactly the same as before to view the same single drive volume.
The Safe Mode of HybridDrives provides optimal data protection by mirroring data from the SSD to the hard disk for maximum resiliency.

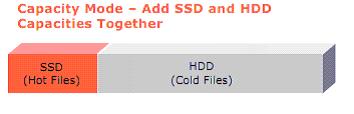

The Capacity Mode of HybridDrives augments SSD and HDD capacity together to a big drive for the big capacity and cost-effective configuration.
Both HDD and SSD drives is easily configured by user. ¡@ ¡@
¡@
¡@ ¡@ Performance Benchmarks
HybridDrive has undergone rigorous performance testing with various HDD and SSD capacities and vendor brands. Below are benchmark results based on industry-standard PCMark test measurements. ¡@

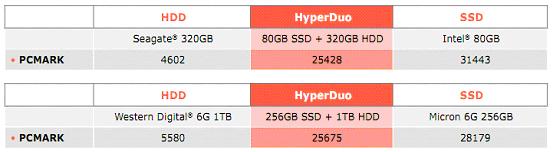

¡@ PCMark Benchmarks Comparing HDD Only vs. SSD Only vs. HybridDrives (HyperDuo) ¡@ ¡@

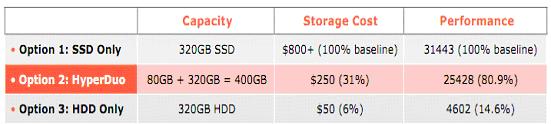

¡@ HybridDrives (HyperDuo) Achieves Near-SSD Performance At 1/3 the Cost ¡@ |
| ¡@ |
|
Highlighted Features ¡@ o 6Gbps SATA III 2 Ports PCIe Gen2 1 Lane Host Adapter o Supports PCIe 1.0 and PCIe 2.0 motherboard o Compliant with 5Gbps PCI Express 2.0 o Fully compliant with Serial ATA specifications 3.0 o Supports SATA III transfer rate of 6.0Gbps, 3.0Gbps, 1.5Gbps o Support HybridDrive (HDD+SSD), Hardware RAID0, Hardware RAID1 o HybridDrive enables 80 percent of the performance of a solid state drive (SSD) at one-third the cost o HybridDrive Modes: Safe Mode (Mirrored Protection), Capacity Mode (Cost-Optimized) o Supports ATA and ATAPI commands o Supports Native Command Queuing (NCQ) o Supports one Port Multiplier FIS-based or Command-based switching and max two RAID groups o Low Profile PCIe Form Factor o Includes PCIe Low Profile and regular size two Brackets o SATA Hot-plug capability o Two Pin headers on board for LED connection o Completely with drivers for 64bit / 32bit Windows 7, Vista, XP, 2003 and 2008 o Includes Flexible, intuitive administration console GUI for power user ¡@ |
| ¡@ |
|
The latest update on : 2013/07/30 |
