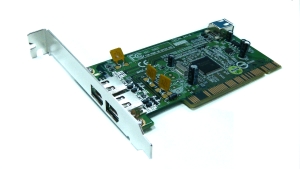

FW-102TI
1394a 2 External + 1 Internal Low Profile PCI Host Adapter (TI chipset)
FEATURES
¡@
o 2 external and 1 Internal IEEE 1394a ( FireWire400 ) 6Pin ports
o Supports 1394 transfer rate at 100/200/400 Mbps
o Compliant with IEEE 1394 Open Host Controller Interface specification release 1.1 and IEEE Std 1394a-2000
o Built-in FIFOs for isochronous transmit (2048 bytes), asynchronous transmit (2048 bytes), and receive (3072 bytes)
o Compliant with PCI Specification, revision 2.2
o 32 bit, 33MHz fully compliant PCI host interface
o Low Profile PCI Form Factor
o Includes Low profile PCI and Regular size PCI two Brackets
o Integrated PCI DMA engine
o Supports 1394 12V Bus Power from PCI Slot Power
o 32-bit CRC generation and checking for receive/transmit packets
o Supports Plug and Play
o 64bit / 32bit Windows and Mac Built-in drivers support
o Chipset : TI TSB43AB23
o Fully RoHS compliant
¡@
