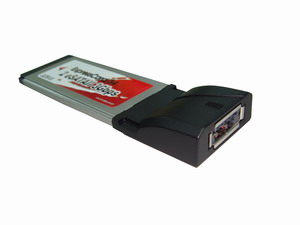

EK-122

Hybrid Power-over-eSATA and USB 2.0 ExpressCard/34 Host Adapter

Add Power over eSATA II 3Gbps and USB2.0 Hybrid connector with NCQ, Port Multiplier support for ExpressCard/34 or ExpressCard/54 Notebook

FEATURES

  • One Hybrid eSATA2 and USB2.0 port

  • Max 5V 500mA Bus Power over 3Gbps eSATA and USB2.0

  • Truly PCI-e based ExpressCard/34 Form Factor

  • 1-lane 2.5Gbps ExpressCard/34 Host supports ExpressCard/34 and ExpressCard/54 Notebook

  • Hot-plug capability

  • Supports SATA II transfer rate of 3.0Gbps

  • Fully compliant with Serial ATA 1.0 specifications

  • Supports Legacy Command Queuing (LCQ)

  • Supports Native Command Queuing (NCQ)

  • Supports FIS-based switching with Port Multipliers

  • 48 bits LBA can Break Capacity-Limit to Support HDD larger than 137GB

  • LED indicate for HDD access

  • Compliant with Universal Serial Bus Specification Revision 2.0 (Data Rate 1.5/ 12/ 480 Mbps)

  • Compliant with Open Host Controller Interface Specification for USB Rev 1.0a

  • Compliant with Enhanced Host Controller Interface Specification for USB Rev 0.95

  • All USB ports can handle high-speed (480 Mbps), full-speed (12 Mbps), and low-speed (1.5 Mbps) transaction

  • Fully 100% compatible with regular eSATA cable, USB A-Type Cable and Power-over-eSATA cable

  • Completely with drivers for Windows NT, 2000, XP and Server 2003

  • Supports 64bit / 32bit Windows Vista

  • Mac OS X v10.4.9, v10.4.10, V10.5.1 Non-booting driver supported by SiliconImage SiI3132.

  • Linux 32bit / 64bit drivers supported for Fedora Core2, Fedora Core3, Fedora Core4, RHEL 4.0, RHEL 4.0 Up1, SuSE 9.0 SP1 RC5, SuSE Pro 9.3 by SiliconImage SiI3132.

  • Fully RoHS compliant
