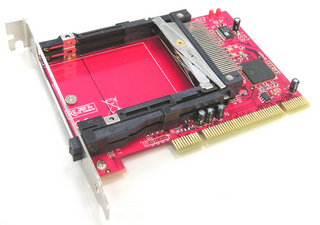

DT-102L

2Sockets CardBus PC Card Single PCI Bus Host Adapter (TI Chipset)

Discontinued !

Please use DT-102

FEATURES

• Supports Type I, Type II, Type III PC Cards
• Two independent PC Card socket compliant with PC Card Standard 7.1
• PCI Bus Power Management Interface Specification 1.1 compliant
• Advanced Configuration and Power Interface Specification 1.0 compliant
• PCI Local Bus Specification Revision 2.2 compliant
• PC 98/99 compliant
• Compliant with the PCI Bus Interface Specification for PCI-to-CardBus Bridges
• Supports active Flash media and Smart Card adapters
• Programmable D3 status terminal
• Mix-and-match 5-V/3.3-V 16-bit PC Cards and 3.3-V CardBus cards
• Supports two PC Card or CardBus slots with hot insertion and removal
• Supports 132-MBps burst transfers to maximize data throughput on both the PCI bus and the CardBus bus
• Interrupt modes supported: serial ISA/serial PCI, serial ISA/parallel PCI, parallel PCI only
• Multifunction PCI device with separate configuration space for each socket
• Five PCI memory windows and two I/O windows available to each 16-bit PC Card socket
• Two I/O windows and two memory windows available to each CardBus socket
• ExCA-compatible registers are mapped in memory or I/O space
• Intel 82365SL–DF register compatible
• Internal data path logic allows the host to access 8-, 16-, and 32-bit cards using full 32-bit PCI cycles for maximum performance
• Independent buffering and the pipeline architecture provide a high performance level with sustained bursting
• Two LEDs indicate for Socket activity
• OS Built-in driver supported by Windows 98, Windows Millennium, Windows 2000 and XP, and Mac OS 10.4.10
• Supports Windows Vista
• Chipset : TI
• Fully RoHS compliant
