DT-102

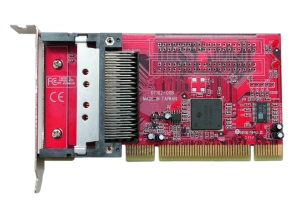

Dual PC Cards in Low Profile PCI Adapter (TI chipset)





 Discontinued!

DT-101 Instead!


FEATURES



o        Two independent PC Card sockets compliant with PC Card Standard 7.1

o        Supports Type I, Type II, Type III PC Cards

Low Profile PCI Form Factor

Includes Low profile PCI and Regular size PCI two Brackets

o        Only occupies one PCI slot space

o        PCI Bus Power Management Interface Specification 1.1 compliant

o        Advanced Configuration and Power Interface Specification 1.0 compliant

o        PCI Local Bus Specification Revision 2.2 compliant

o        PC 98/99 compliant

o        Compliant with the PCI Bus Interface Specification for PCI-to-CardBus Bridges

o        Supports active Flash media and Smart Card adapters

o        Programmable D3 status terminal

o        Mix-and-match 5-V/3.3-V 16-bit PC Cards and 3.3-V CardBus cards

o        Supports PC Card hot insertion and removal

o        Supports 132-MBps burst transfers to maximize data throughput on both the PCI bus and the CardBus bus

o        Multifunction PCI device with separate configuration space for each socket

o        Five PCI memory windows and two I/O windows available to each 16-bit PC Card socket

o        Two I/O windows and two memory windows available to each CardBus socket

o        ExCA-compatible registers are mapped in memory or I/O space

o        Intel 82365SL–DF register compatible

o        Internal data path logic allows the host to access 8-, 16-, and 32-bit cards using full 32-bit PCI cycles for maximum performance

o        Independent buffering and the pipeline architecture provide a high performance level with sustained bursting

o        Two LEDs indicate for PC Card Socket activity

o        OS Built-in driver supported by Windows 98, ME, 2000, XP, Vista, 7 and Mac OS 10.4.10

o        Chipset : TI

      Fully RoHS compliant
